Complete cable testing with this Scout Pro 3 cable tester kit and multi-bit screwdriver tool set. Locate and test video, data and voice cables with the LanMap. With the CoaxMap Location Remotes map, you can identify multiple cable runs in one step. It comes with an 11-in-1 screwdriver/nut driver with a fast interchangeable blade.
- Includes the Scout Pro 3 cable tester and a multi-bit screwdriver

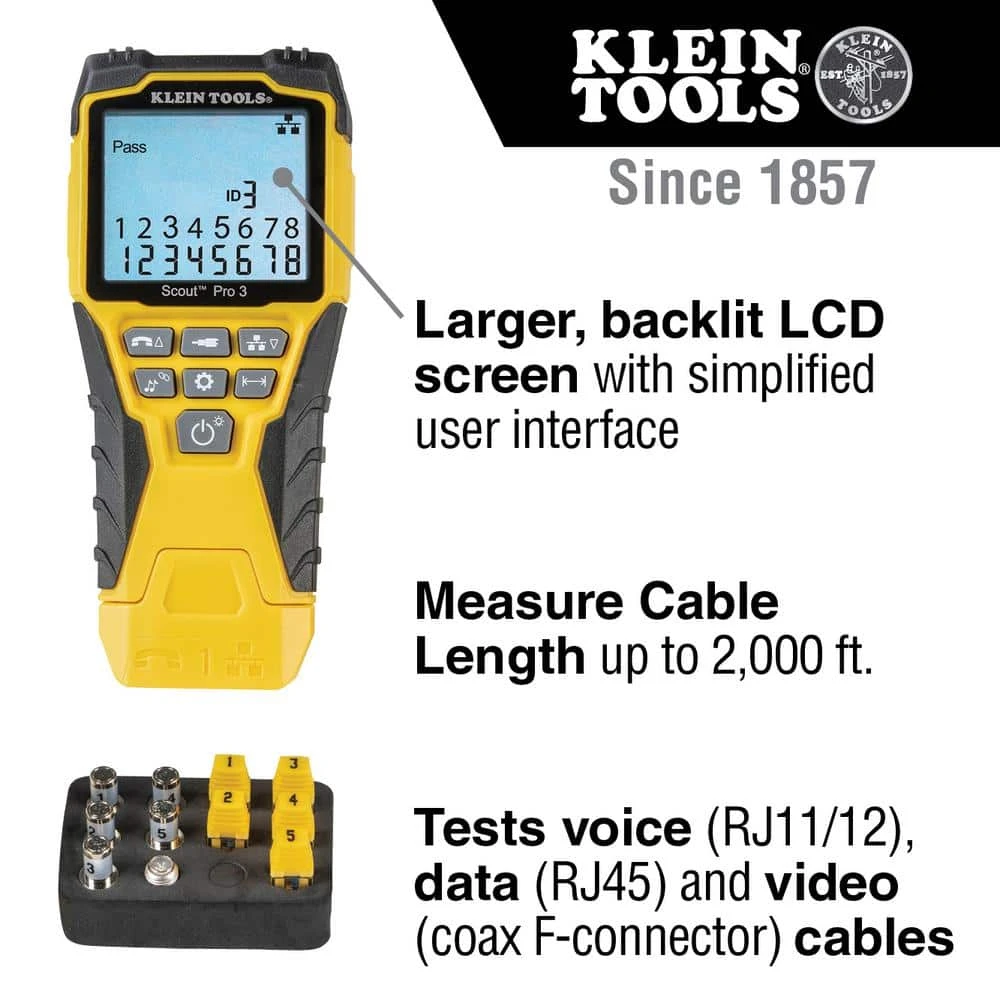

- Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
- Measure cable length up to 2,000 ft. (610 m)

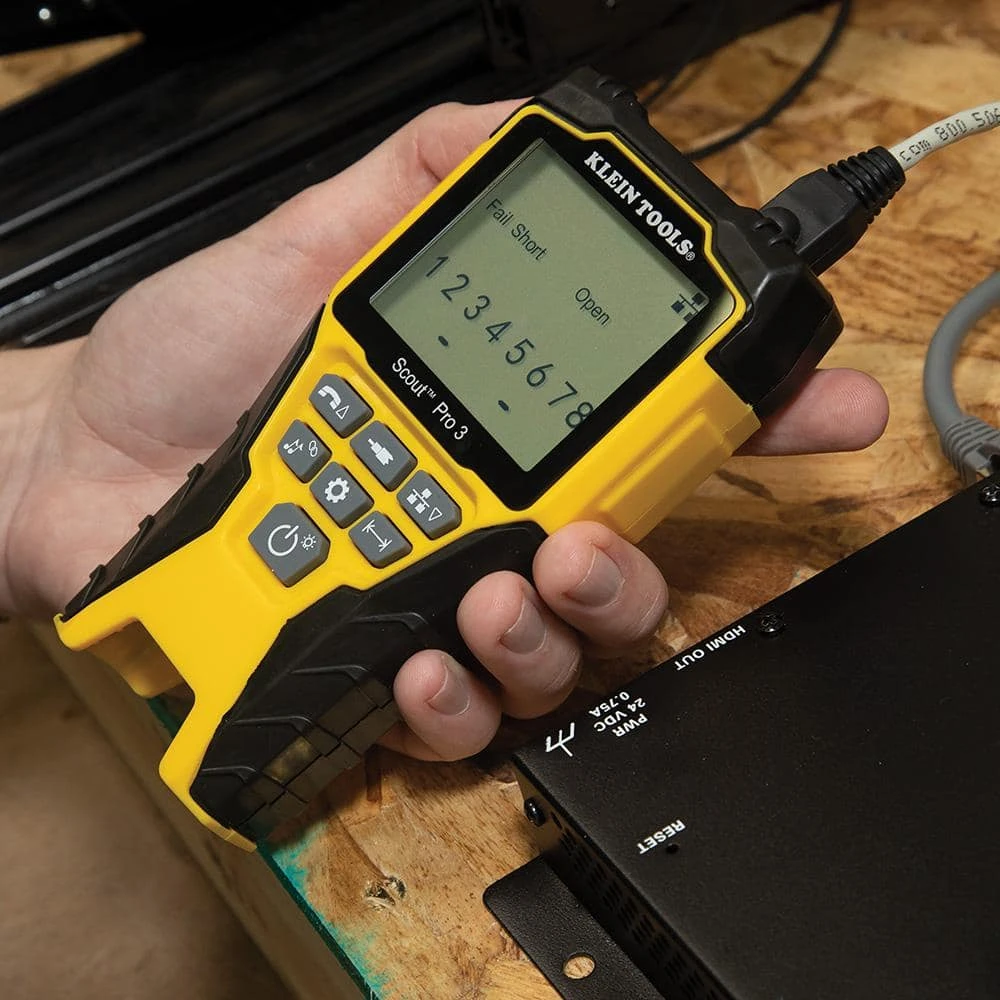

- Test for open, short, miswire or split-pair faults

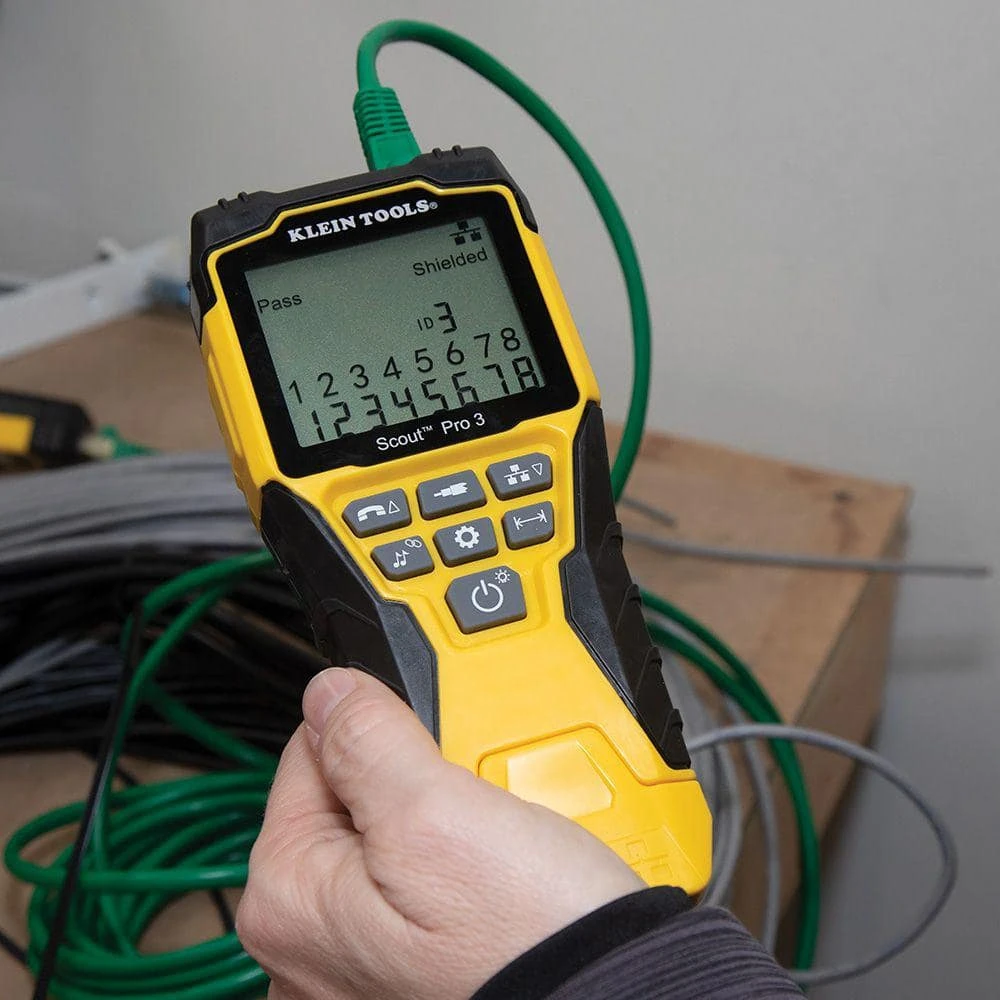

- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123, sold separately)

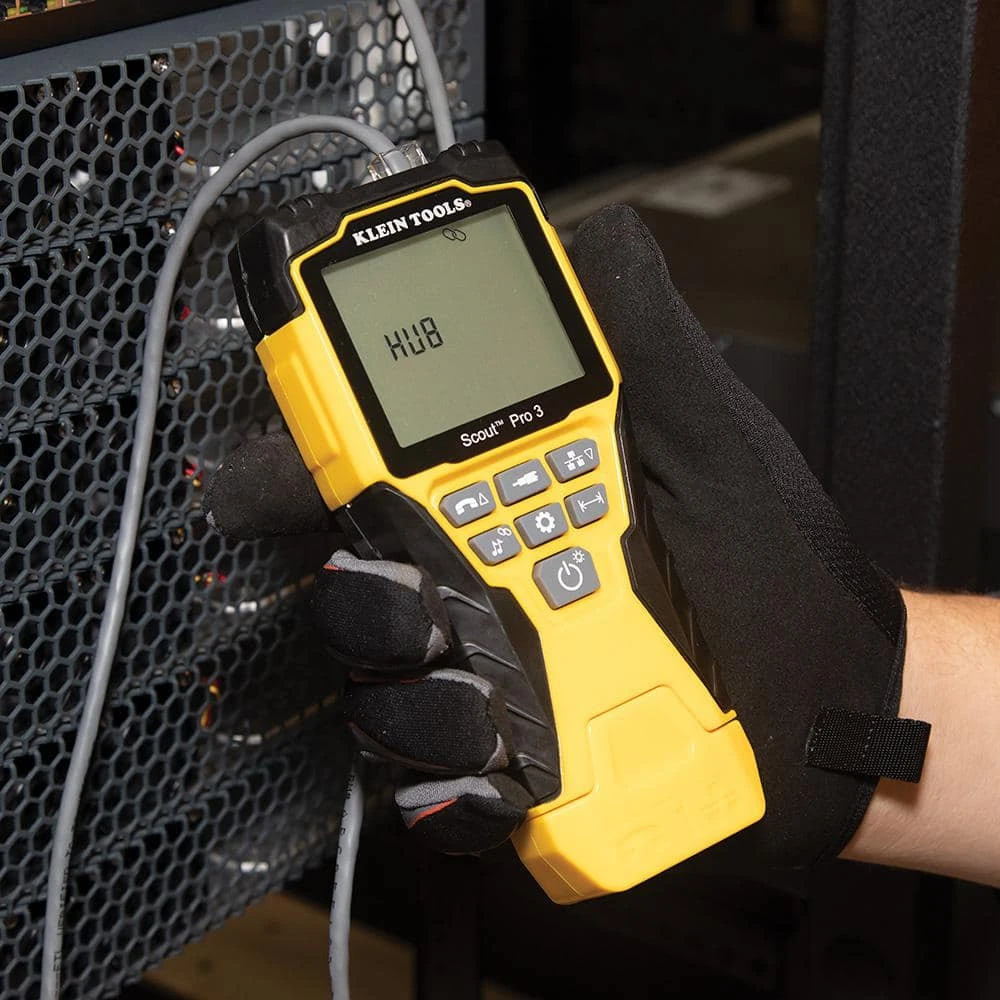

- Hub blink mode to identify port location on a hub or a switch

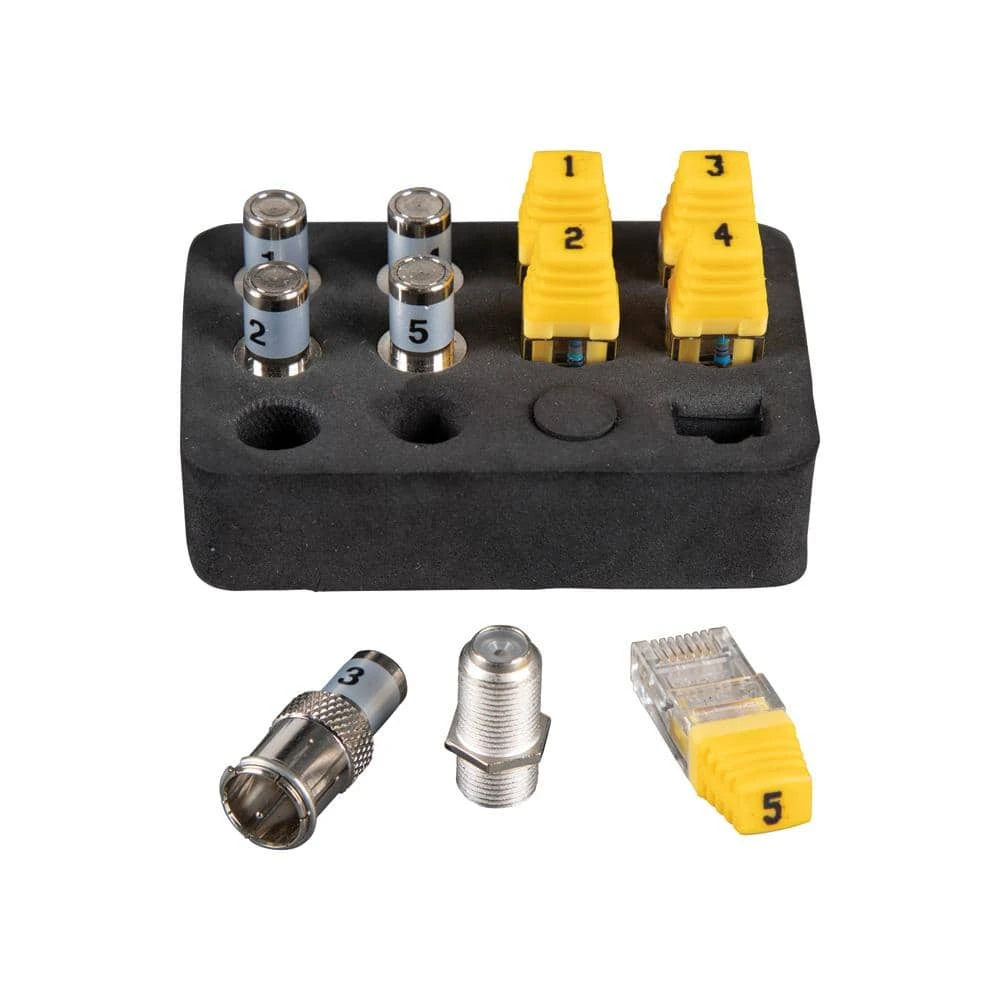

- LanMap and CoaxMap Location Remotes (five each) map and ID multiple cable runs in a single step

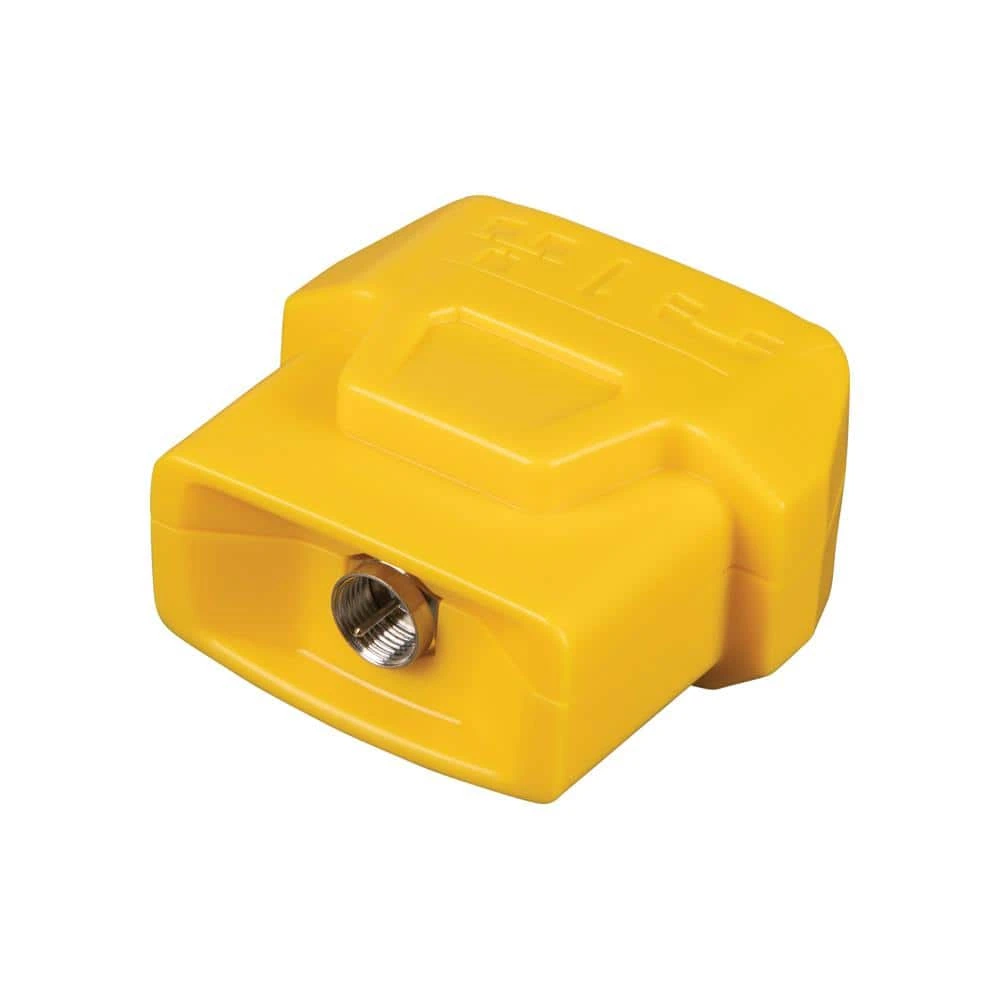

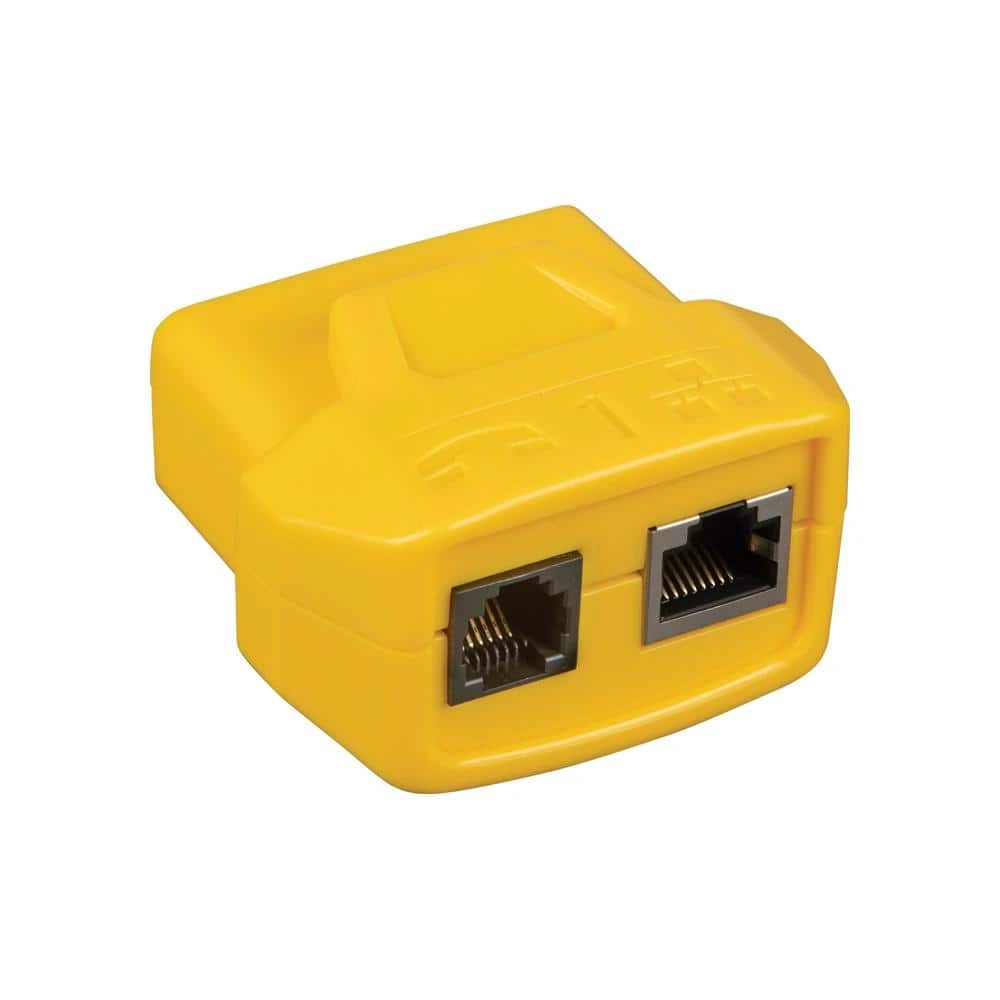

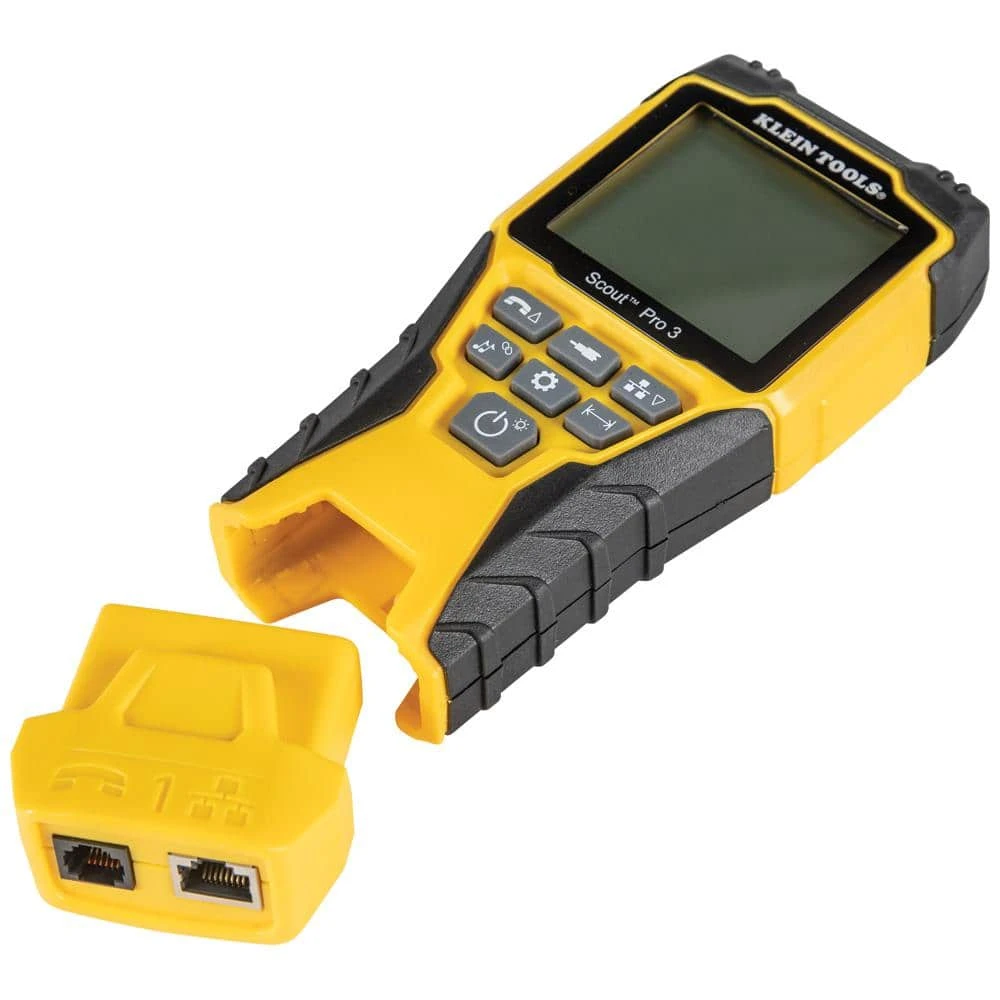

- Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
- Auto power-off feature to conserve battery life (9V included)

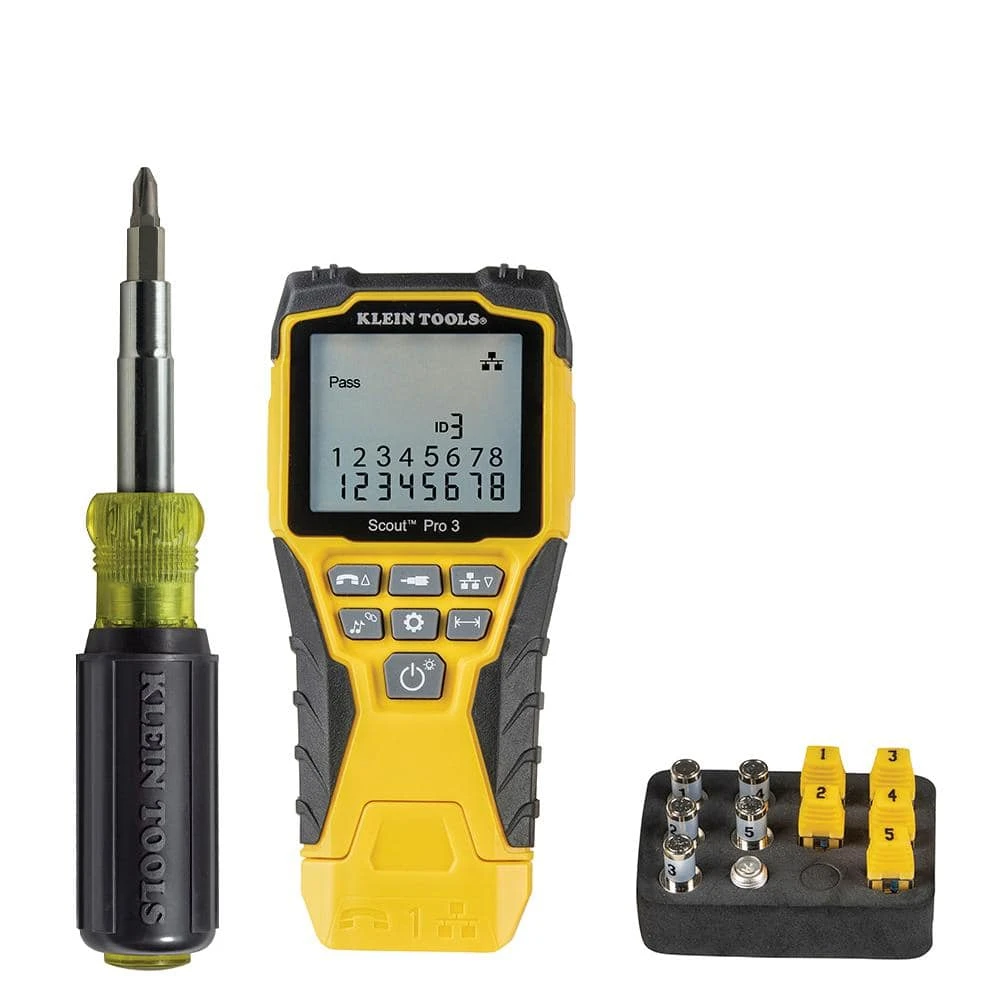

- Kit includes: ScoutPro 3 tester, one self-storing remote, five LanMap RJ45 locator remotes, five CoaxMap F-connector locator remotes, one coax F-connector, manual and 9V battery

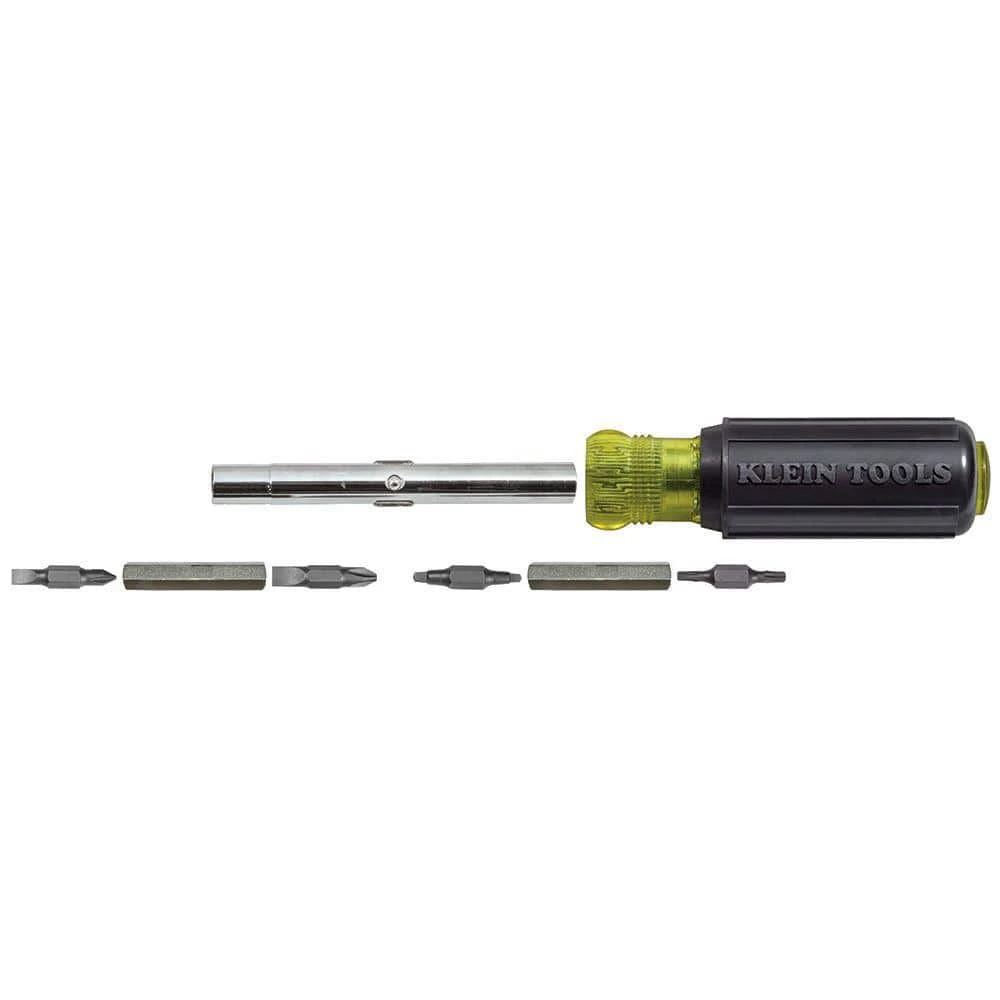

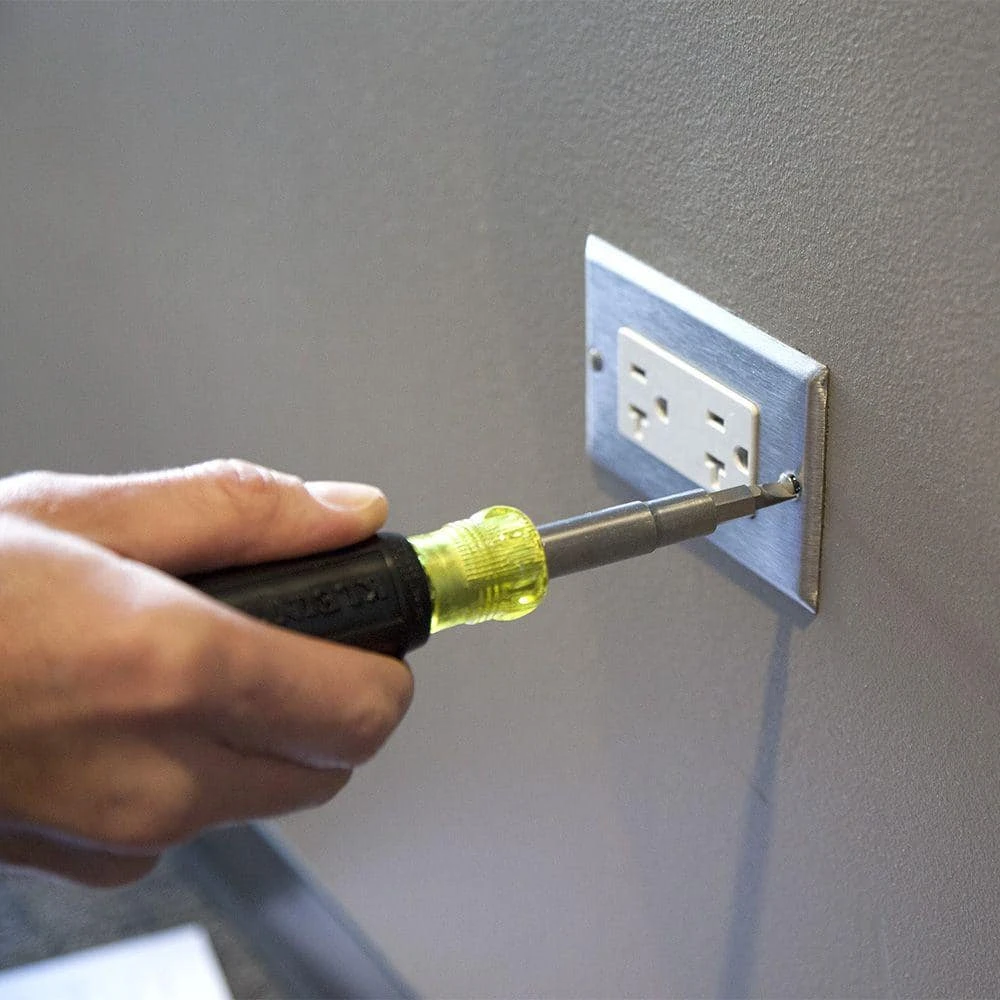

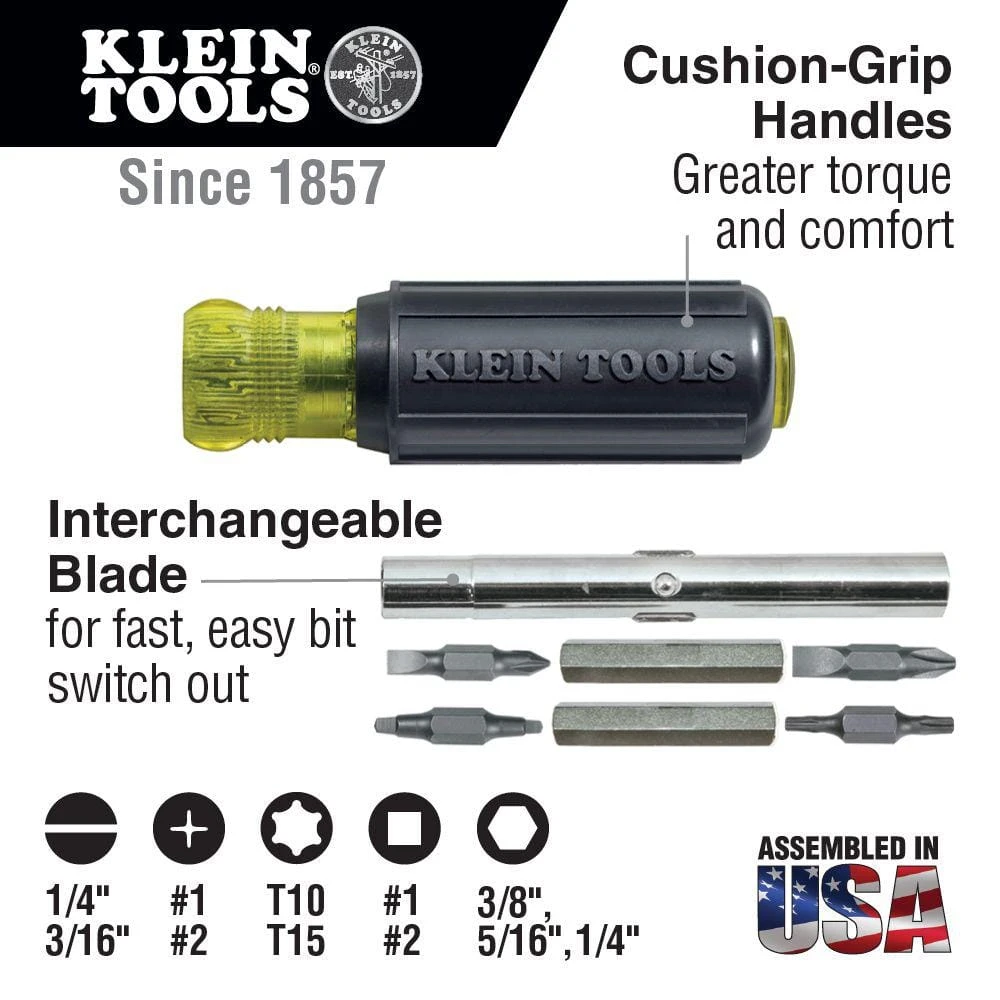

- Multi-bit screwdriver/nut driver shaft holds eight popular tips and converts to three nut driver sizes
- Includes industrial strength heat treated bits: 3/8 in., 5/16 in. and 1/4 in. nut drivers, #1 and #2 Phillips, 1/4 in. and 3/16 in. slotted, T10 and T15 TORX and #1 and #2 square recess
- Interchangeable blade for fast and easy switch out, comfortable Cushion-Grip handle
- Blast finish bit tips provide a firm hold and reduce cam-out, search Cat. No. 32526 for a full set of replacement bits
- Following replacement bits are available: see Cat. No. 32482 (#1 Phillips and 3/16 in. Slotted), Cat. No. 32483 (#2 Phillips and 1/4 in. slotted), Cat. No. 32484 (#1 Square and #2 Square) and Cat. No. 32485 (T10 TORX and T15 TORX)
- TORX is a registered trademark of Acument Intellectual Properties, LLC
